Nozzles for spraying booms

Short curved cyclone nozzle

The gigant "Cyclone" and "OR" sprayers are particularly suitable for use on spraying booms that need high rates of flow and ranges.
They are supplied standard with 3/8 spherical connection and Ø 1.5 mm round hole ceramic nozzle, but with an surcharge of € 0.90 the fan nozzle version is available too.  Please specify on your order type and measurement of nozzle ( see plan round nozzles and fan nozzles).

N.B. The 047.2804 lock nut it is'nt standard supplied with the nozzle, so it needs ask for it if you want it.

Long curved cyclone nozzle

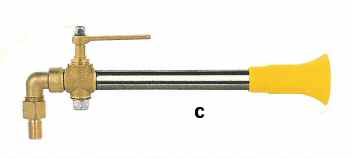

Curved long cyclone nozzle with turbo diffuser

Ball joint for fixing nozzles

Part. code description price
a 053.5601  Curved short cyclone nozzle €
b 053.5602  Curved long cyclone nozzle €
c 053.5603  Curved long turbo cyclone nozzle €
d 047.2702  3/8 nut for ball joint €
e 047.2604  3/8 ball joint €
f 047.2804  3/8 lock nut for ball joint €

OR Gigant nozzles

 Thread code description price
3/8 053.4702  3/8 OR gigant curved nozzle with 1.5 round nozzle €
1/4 053.4802  1/4 OR gigant curved nozzle with 1.5 round nozzle €
3/8 053.4704  3/8 OR gigant curved nozzle with 1.2 round nozzle €
1/4 053.4706  1/4 OR gigant curved nozzle with 1.2 round nozzle €
