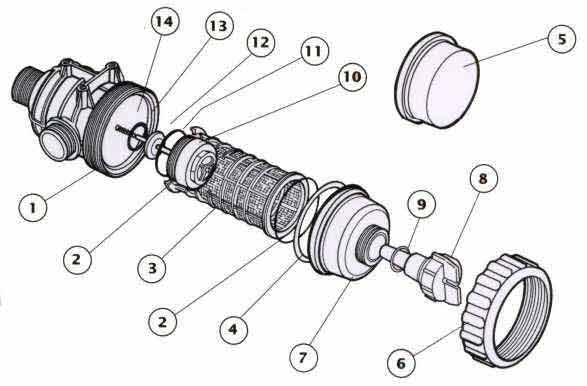

PART. |
CODE |
Description |
Price |
|||
| 1 | 045.0708.01 | 220 filter body | ||||
| 2 | 045.0708.02 | 101.3 x 2.6 O ring | ||||
| 3 | 045.0708.03 | White cartridge (32 mesh) for the 220 filter | ||||
| 3 | 045.0708.03A | Blue cartridge (50 mesh) for the 220 filter | ||||
| 3 | 045.0708.03B | Grey cartridge (80 mesh) for the 220 filter | ||||
| 4 | 045.0708.04 | 126.4 x 7 O ring | ||||
| 5 | 045.0708.05 | Cap for the 220 closed filter | ||||
| 6 | 045.0708.06 | Lock ring nut for the 220 filter | ||||
|
|
|
|
||||
| 7 | 045.0708.07 | Cap for the 220 filter with valve | ||||
| 8 | 045.0708.08 | Plug for the 220 filter with valve | ||||
| 9 | 045.0708.09 | 39.7 x 3.5 O ring in Viton | ||||
| 10 | 045.0708.10 | Valve body for the 220 filter | ||||
| 11 | 045.0502.02 | 71.1 x 2.6 O ring | ||||
| 12 | 045.0708.12 | Valve shutter for the 220 filter | ||||
| 13 | 045.0708.09 | 39.7 x 3.5 O ring in Viton | ||||
| 14 | 045.0708.14 | Spring valve for the 220 filter | ||||
|
||||||
